Efficient Portable Ground Mounted Vertical Antenna for 40 Meters

I like to work QRP CW and exclusively use  home brew portable equipment. I have struggled with the best antenna to use for 40 meters.  Wire antennas are lightweight and usually efficient but often require tuning, a structure or tree to install, and often end up low to the ground with poor DX performance. A 1/4 wave vertical is a good choice but is 33 feet long and requires lots of radials for acceptable efficiency.

What I came up  with is nothing new but I was able to verify good performance and efficiency.

I have constructed  a center loaded  20 foot vertical using a 20 foot collapsible fishing pole as the mast. The loading coil is wound with 12 gauge bare copper on  a couple of PVC 2 inch couplings joined together. The coil is about 12 uH in value. Final tweaking is accomplished by creating a tiny loop at the top of the antenna(2 inches of area) that can be varied in size(create a small amount of capacitive top loading). The radial system consists of 21 ten foot radials. Since they are short the footprint is small and setup is easy. Using more short radials is more efficient than using a few long ones(up to a point). Unless you are going to use 60 radials or more there is no reason to have them 1/4 wavelength long. This is because current density is greatest  at the feed point and diminishes as the radials extend out. Roughly, 24 radials at 1/10 wavelength long have the same performance as the same number of radials at 1/4 wavelength long.

From my measurements with a network analyzer, the resonant  feed point impedance is 30 ohms and calculated impedance with zero losses would be 18 ohms. So its on the high side of 50% efficient, which is good for a portable vertical.

I have made a couple of cross continent contacts with good results using 1 watt, so I am pleased with the ease of install, small footprint, portability and effective radiating.

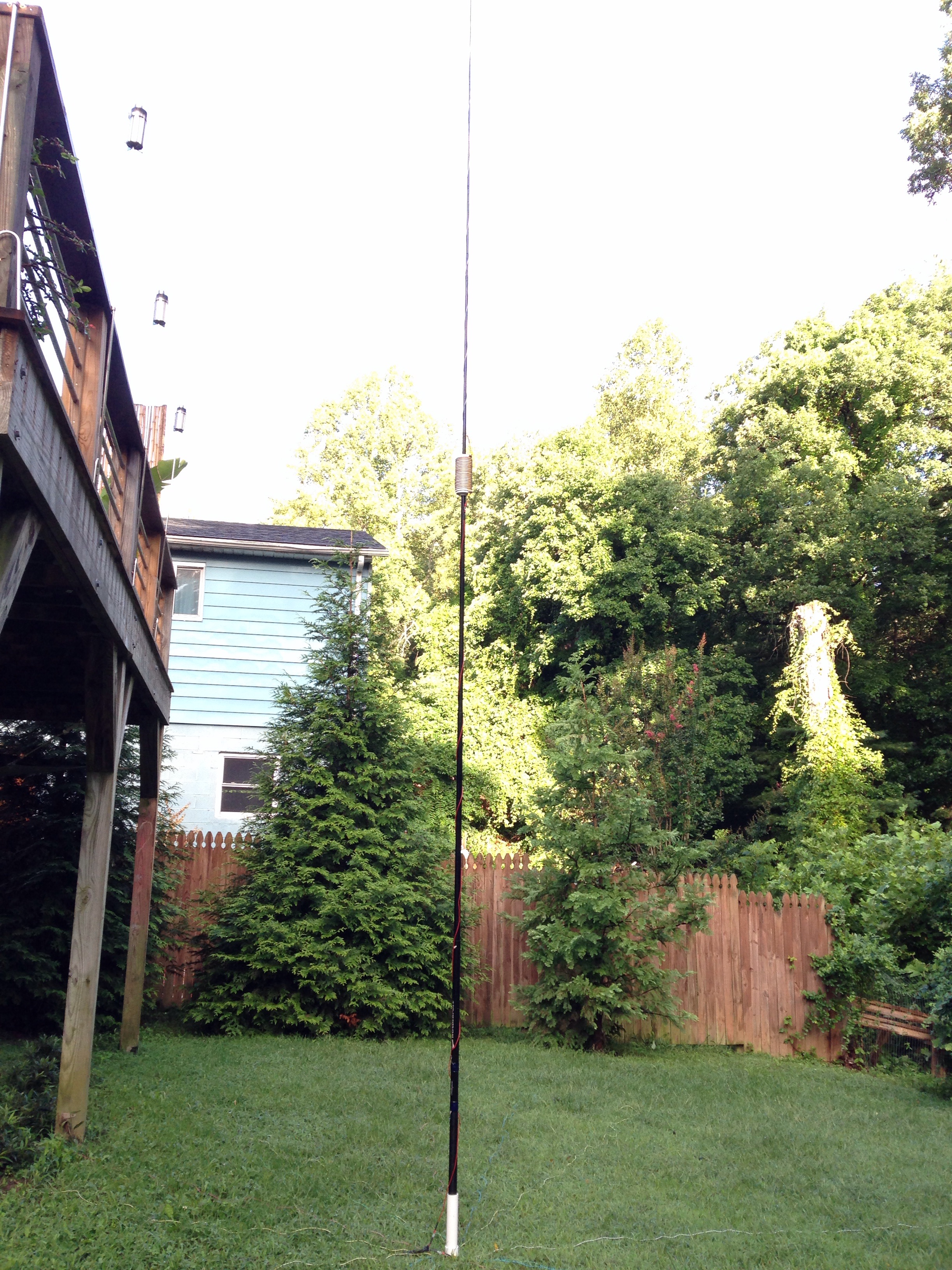

Antenna stuck into my Yard

image (2)

Close up of the loading coil

image (3)

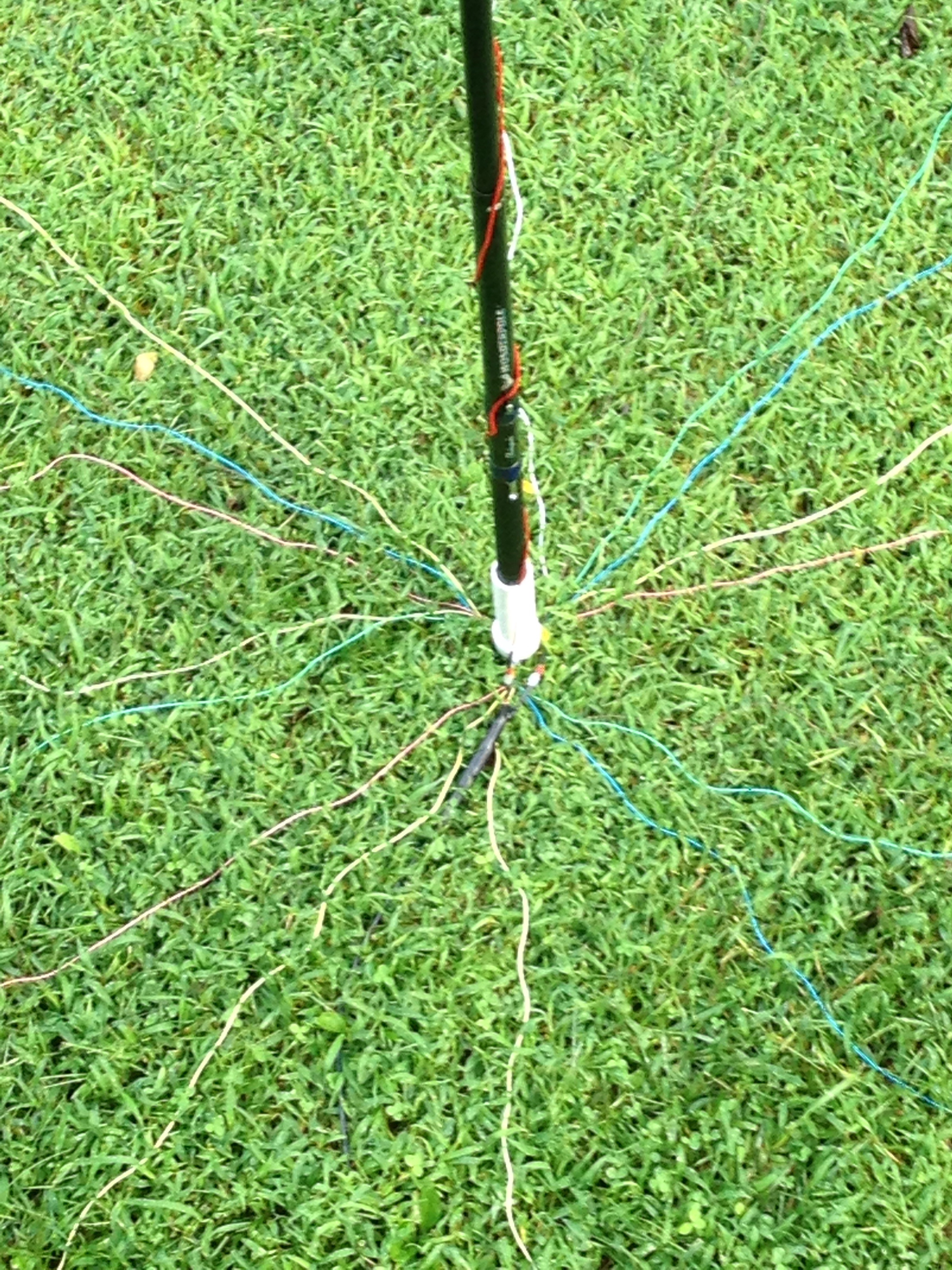

Short Radials at Base

image (1)

40 meter Direct Conversion QRP Transceiver using 74AC240 Power amp

This is my new qrp transceiver design. It uses the CS2000 clock generator circuit I use for a number of my receivers and a 74AC240 buffer as a push pull 1.5 watt final amplifier. The final unit uses my low power/low noise LCD display and is set to tune from 7.000 to 7.300 MHz.

https://circuitsalad.com/2014/07/31/very-low-power-3-digit-lcd-display-with-serial-control/

If one changes the the output networks (L matching and half wave low pass) and simply adjusts the software for tuning range, one can use any band desired. The inductors are air wound or made using scraps of ferrite taken from junk box inductors. Tuning is accomplished by means of a cheap mechanical rotary encoder. The Micro-controller provides the control signals for T/R switching, generates a sidetone and shifts the frequency 700Hz on TX. The transceiver supports full break-in keying. The input to the receiver is isolated during TX by means of a BSS123 mosfet used as a switch. A 2N7000 will work here as well. The receiver uses a leftover inverter stage as a RF amp. It works surprisingly well and also provides the bias for the switching mixer input. There is a 2nd order op amp low pass filter for CW. The coupling capacitor C30 is normally not needed for receive, but when the TX is keyed, there is DC imbalance on the output of the mixer switches – the differential audio amp will slam to the rails creating large key clicks on the side tone. C31 is required for stability when keying, without it, occasional parasitic oscillations can develop.

The circuit could be easily modified to use a VXO or VFO. One would simply have to modify the keying logic(connect key directly to TXRX signal and invert this signal for MUTE connection) One can use the remaining two 74HC04 inverters to generate a side tone and the the logic.

Update: Changed the band to 30m for fun. The only hardware changes were: L1 & L2 (.11 uH), C21 (800pF), L3 (.6uH), C22 & C23 (270pF). The 74AC240 works beautifully at 10 MHz – outputting the same 1.5 watts and even running  a few percent more efficient. I must have nailed the matching network values.

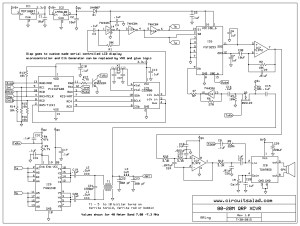

Schematic(minor edit for key clicks 8/18/2015)

QRPXcvr

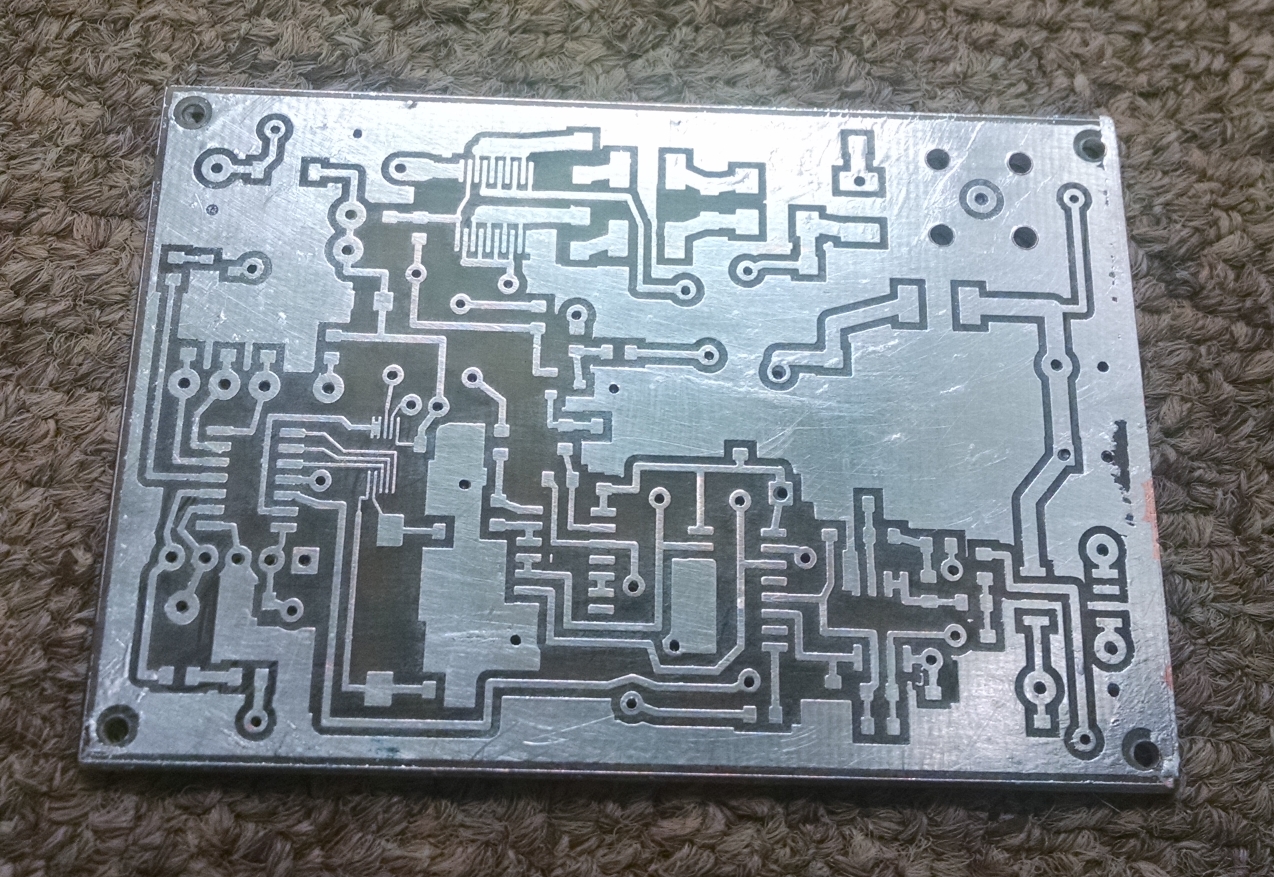

Unpopulated Home Brew board

IMG_20150730_144829565

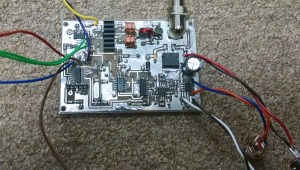

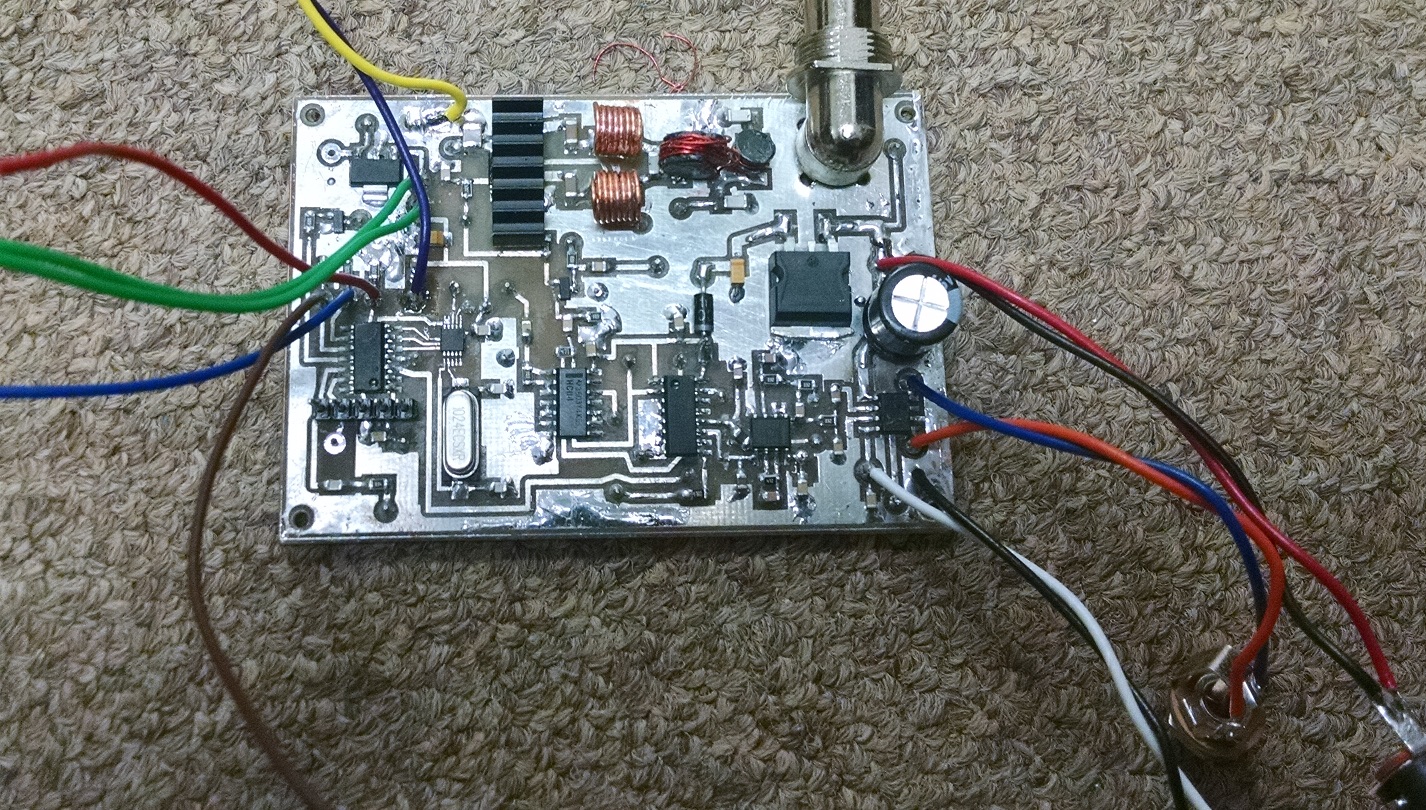

Populated board

IMG_20150806_163351717

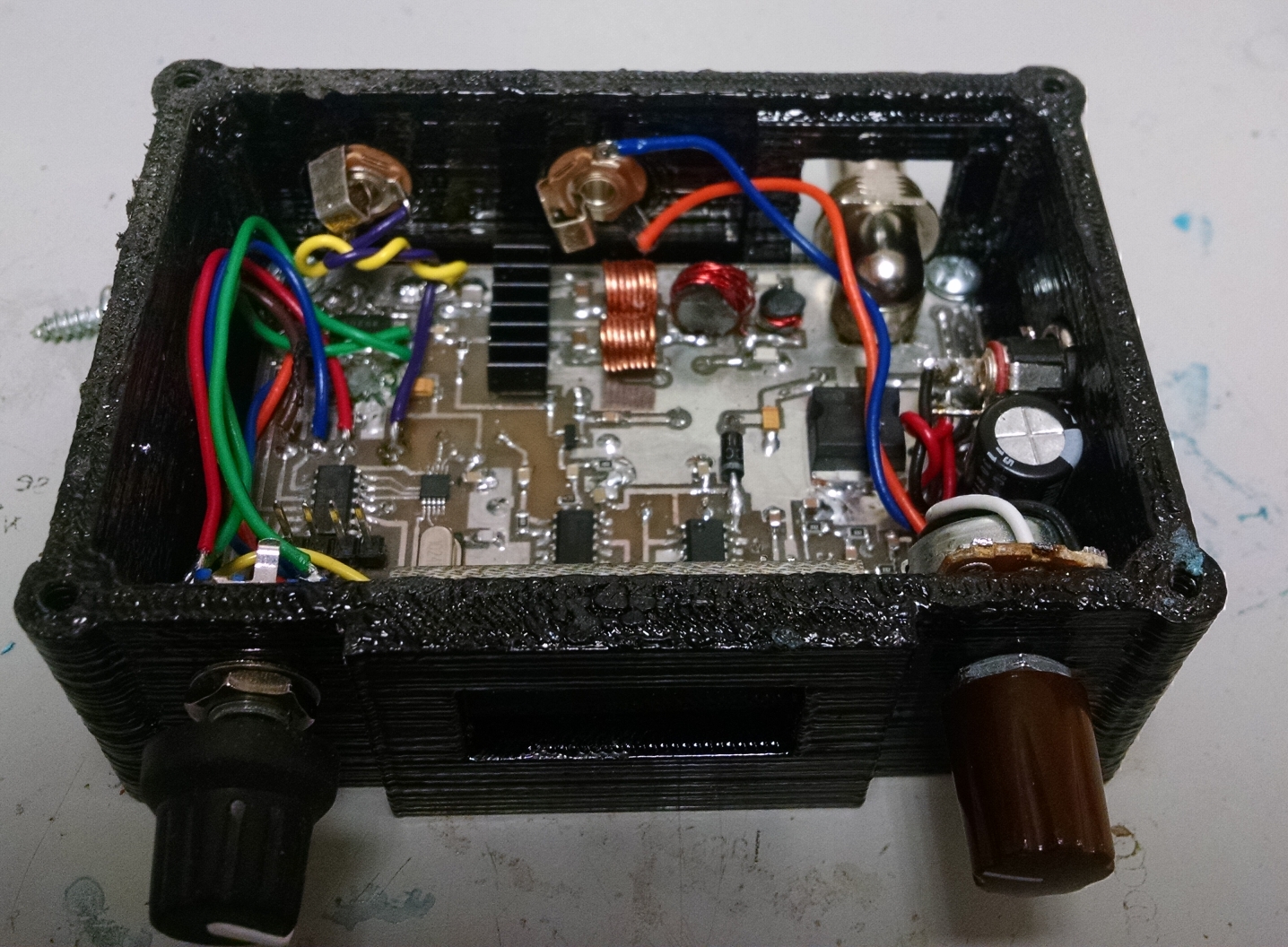

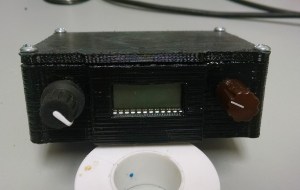

XCVR in Home Brew 3D printed Case

IMG_20150810_111619507

IMG_20150810_111515266

Video Demo

1.5 Watt 74HC240 QRP RF Amp using 74AC240 inverter for improved output

I am building a little QRP  rig for the 40 meter band , utilizing one of my DC receiver designs. I am using a CS2000 clk generator for the receiver and can use the clock output to drive a 1 watt or so RF amp for the TX. I am prototyping the transceiver now and will post that  design when it’s done. I designed a nice class E final at about two watts but it was tricky to test and tune…etc- so I thought I would come up with an amplifier that was easier to duplicate by other builders. This amplifier works well and is easy to build. It puts out in excess of one watt from a single  74AC240 (the 74HC240  will also work but not put out as quite as much power). You can also use a couple of 74AC04’s  also. The 240 is convenient however, because it has an enable pin for keying when using CW. The circuit uses two sets of four inverters driven by  a couple more inverters( to create differential inputs) and either a balanced L network(followed by a balanced to single ended combiner transformer) or  a LC tuned balun to match the output to a 50 ohm load. The schematic shows both methods and values for 7 Mhz. I have created a spreadsheet for calculating networks for any band desired. The inverters have very low impedance and so you need to match roughly 4 ohms at the inverters to 25 ohms for each side of the push pull sets. You need to heatsink the inverter IC’s! I used a  small heatsink for IC’s (seen on top of the 74AC240 TSSOP package) but you can use a piece of bent aluminum – or copper, etc. Because of the low Z, all of the matching inductors are small – so you can easily fabricate your own small  air wound coils or coils wrapped on scraps of ferrite from junk inductors- you don’t need to have specialized toroid cores.

The LC balun works well but was trickier to get adjusted (needed further matching by means of a L network). The simple “sortabalun” transformer  combiner in tandem with the balanced L network works  a little better and  is easier to design and  adjust. The only disadvantage is you need some sort of ferrite core material for the transformer – whereas the LC balun method can be all air inductors. If you have some ferrite material – use the transformer method. One could do impedance transformation with the transformer but the L matching provides filtering, can be easily adjusted for  parasitics in the inverters(capacitance) and  a 1:1 transformer is very easy to construct!

The only drawbacks of this design are, one; you can only use 5v up  8V max to power the amp and two; it is not very efficient (mine runs at about 40%- 45%). It can draw .4 amps @ 8V – which is quite a bit of heat! Having said that, it is fun to build and tolerant of mismatched SWR. Overall, not bad performance. If you used two of them (8×8 push pull) you would need to adjust down the L network inductors and increase the capacitor(this lowers the impedance at the inverters further). I expect you could get more than 2 watts.

Schematic Diagram(minor revision 07/29/2015)

QRP RF Amp

View of main amp using LC Balun

 IMG_20150722_213556201

 Just over 1 Watt 2nd and 3rd harmonic down 37 dB with LC Balun

IMG_20150722_213704057 IMG_20150722_213722665

Over 1.5 watts with balanced L network and sortabalun!

Harmonics down more than 40 dB!

IMG_20150723_193630353 IMG_20150723_193652596

Link to network designer spreadsheet: https://www.adrive.com/public/5wtBBr/network%20designer.xlsx

Software Defined Radio baseband processor based on FV-1 chip. NO COMPUTER required!

There is this great DSP processor chip  called an FV-1 which is a  dedicated audio dsp processor  sandwiched between stereo  24bit ADC’s and 24bit DACs. It can be treated as a black box analog part with audio in and audio out only. With a few discretes, a crystal, and an eeprom, you can  create a complete Software Defined Radio processor the size of a couple of postage stamps. The input should be I and Q baseband signals. I have also been able to demodulate AM by phase shifting the I signal at audio as the information is symmetric about the carrier. IMG_20150618_122603733

I have developed a complete radio design, including: the Quadrature DC receiver, and the baseband dsp processor. I have AM mode, LSB and USB. I have included bandwidth filtering for the different modes and dsp AGC limiting. I am very pleased with the performance.

The FV-1 is programmed with a free compiler provided by Spin semi…the manufacturer. The FV-1 requires an eeprom to hold the programs and you can store up 8 selectable program blocks and each can have a different program function(such as my AM, USB, LSB modes). FV-1 parts and the dev board can be purchased at:

http://www.experimentalnoize.com

The FV-1 uses a very cryptic assembly language to create digital filters and perform signal processing. The commands include multiple operations all at once, such as multiplications, additions and reading writing memory. Each command is a building block for different filter structures and operations. You can execute 128 instructions per a sample and because of the efficient command structure you can create most single order filters in two instructions. There are a number different approaches to making allpass filters. One approach only requires two instructions per a filter section and uses FV-1 delay memory. I chose to do a different filter architecture requiring more instructions and more memory. It works well but the two instruction method works fine also. The FV-1 is very well documented and there are numerous coding examples. With a little  effort, reading through all the documentation, one can get up and running with FV-1 development pretty quickly

Example AM  demodulator and USB demodulator code for the FV-1 (quadrature inputs)

AM_Demod  USB_Demod

I program the eeprom with my microchip pickit2 programmer or the FV-1 dev board. If you are going to explore algorithm design with the FV-1, I would recommend getting the FV-1 Dev board. Below is the source code and hex file for my design such that one can just program the eeprom and use what I have done, as is.  Once loaded on the eeprom, the three modes AM, USB and LSB are selected by pulling to ground: Sel1, Sel2 and sel3 respectively. This code is intended for quadrature inputs to the left and right input channels and the output is on the right channel out (the schematic below combines outputs of the left and right DAC so you should probably load the output into the left DAC as well).

Link To FV-1 Hex file:

https://www.adrive.com/public/GNPAt8/SDRadioV1.hex

DSP processor Schematic(minor update to TDA7052AT 07/01/15)

dsp radio baseband

Basic Quadrature Direct Conversion radio

This is a variation of my last sampling receiver (link below)

https://circuitsalad.com/2014/07/31/simplified-switching-mixer-dc-receiver-uses-no-tuned-circuits

IQReceiver

allpass filter Calculator for IIR digital filter coefficients

allpass digital calculator

Quick Demo of USB..LSB…and then AM

Demo of AM from I signal only(no quadrature)

Code for AM demodulator with single signal input, (uses two instruction allpass filter structure)

AM_no IQ

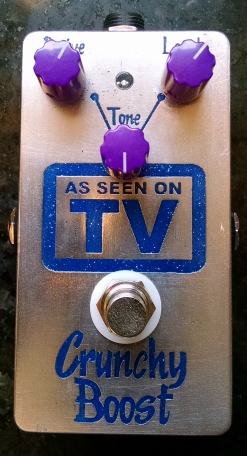

As Seen On TV Crunchy Boost ….. a simple overdrive that sounds great

as seen on tv pedal

My Zombie Screamer is really good for heavier overdrive sounds but I wanted to design a simple overdrive that had a wide range tonal control(treble boost and cut), that could be used as a simple clean boost…through light overdrive….. all the way to heavier distortion. It uses junk-box type parts and is easy to get up and running. The only part that is a little unusual is the 5k tone control pot. I say this because ideally, it would have an anti-log taper. A linear pot will work fine. I like the sound and it can be tweaked in a number of  interesting ways. Decreasing R3- will increase your max overdrive level, you can go to just two diodes instead of two sets of series diodes for clipping, R10 can be made larger( softer clipping) or smaller(harsher clipping).  The tone control can be modded also. You can swap the pot connections to C6 and R8(wiper will now go to C6 and the high side connection will go to R8). This changes the curve some. Another option is to tie C6 to the top of R8 and then connect c9(you may want to adjust this value) through the tone pot(as a variable resistor). This only gives treble cut but the overall gain is higher giving more intense distortion.

Schematic:

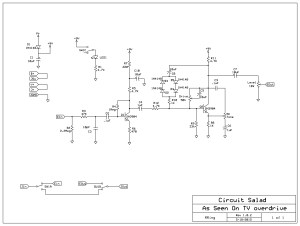

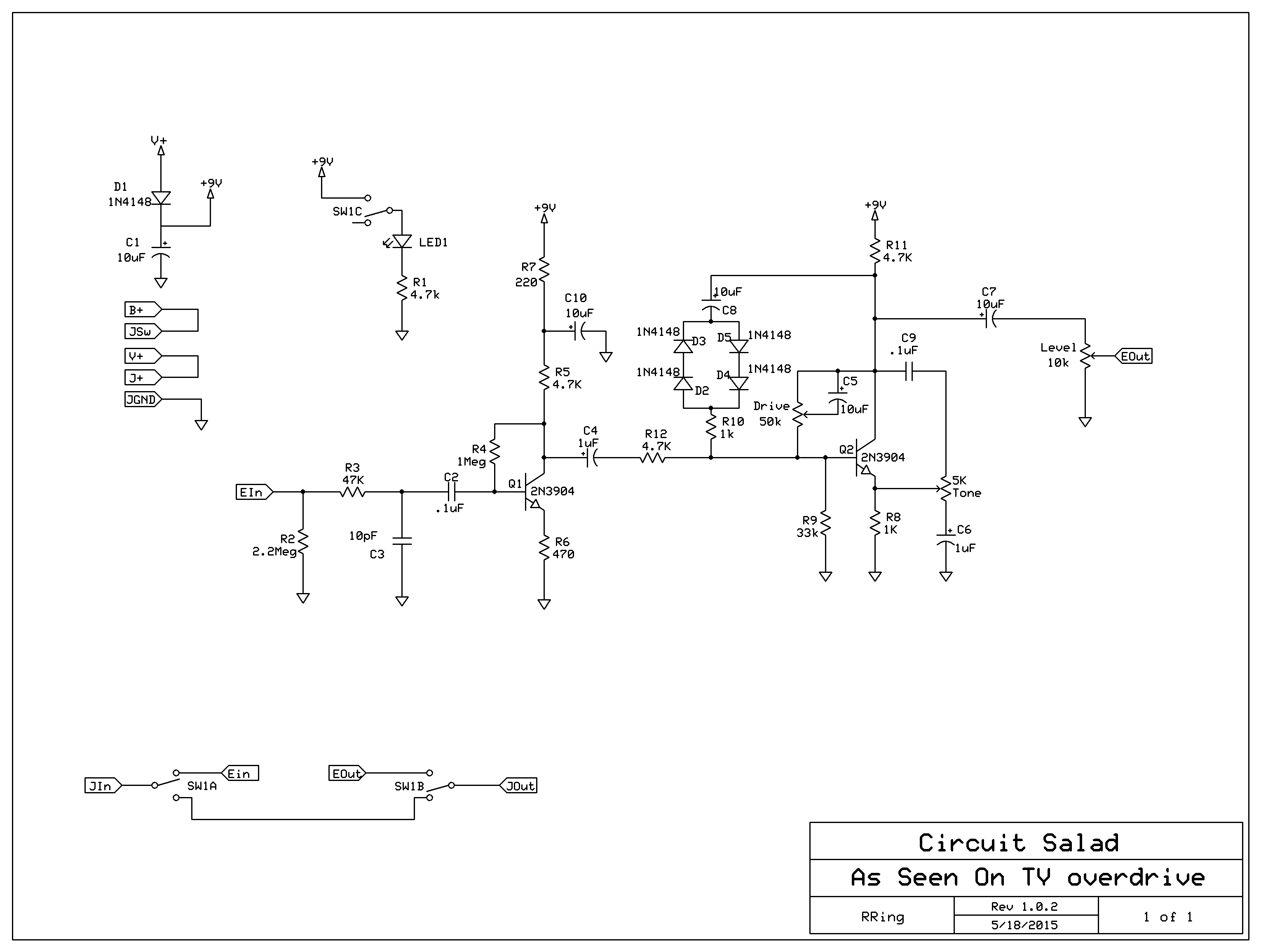

as seen on tv2

Alternate Schematic

(more drive for low output single coil pickups)

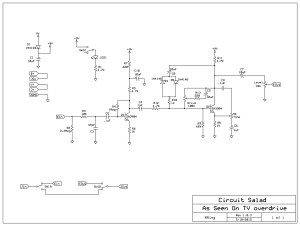

as seen on tv3

Yet another version which is hybrid FET/Transistor

(best range of overdrive)

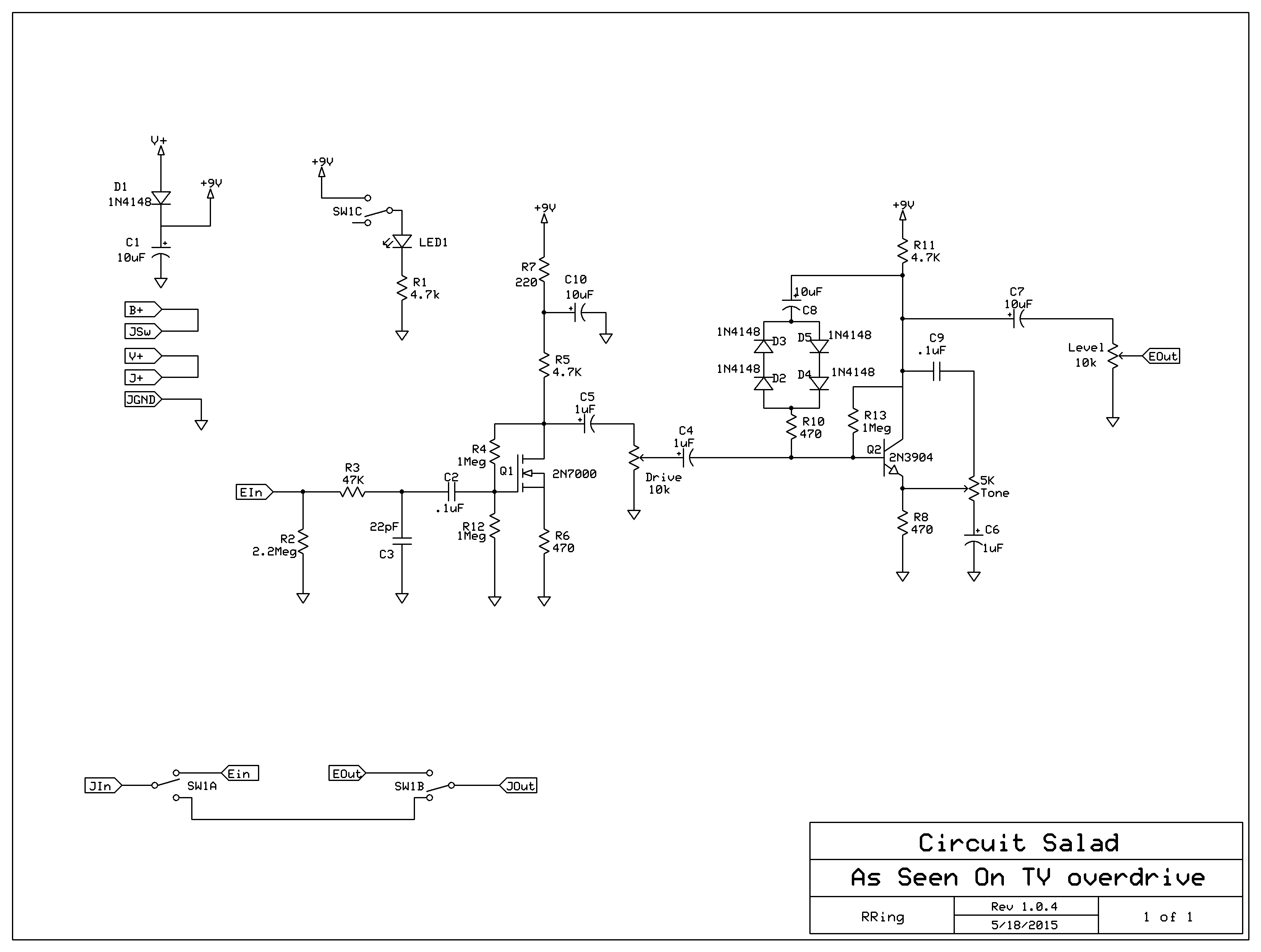

as seen on tv4

Surface Mount Circuit Board:

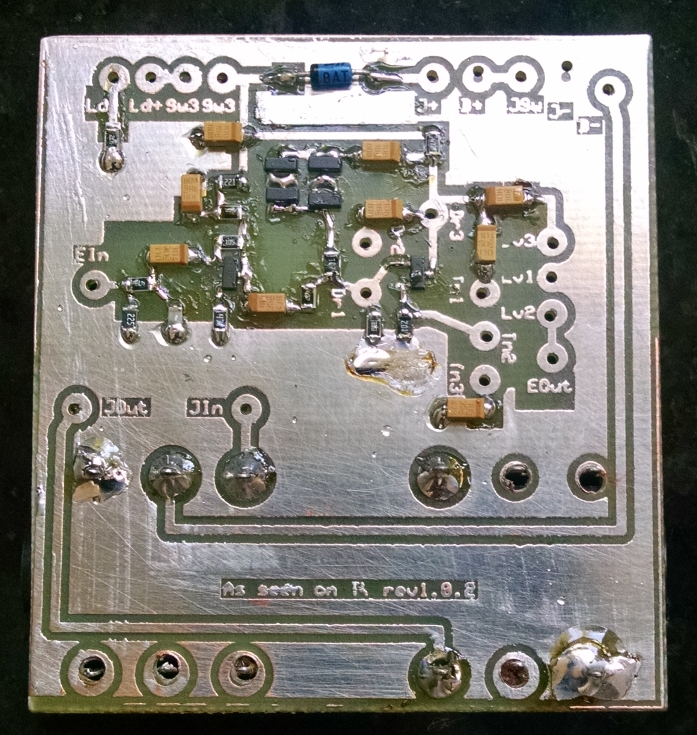

IMG_20150519_122103308



Yet another Variant of the Junk Box Regen – this one is really weird but is an excellent performer

In this version, I removed the darlington detector and added a emitter follower(Q3) to bias Q1 and act as a reflex detector. With this arrangement the circuit works best with a supply voltage from one to two volts or so. I used three diode drops in series to achieve this. You could also use a LED.  It has extremely smooth regeneration. The selectivity is excellent.

Again I got it to work with a wide range of values, so it should be easy to reproduce. I hope someone builds this and gives me their opinion on performance.

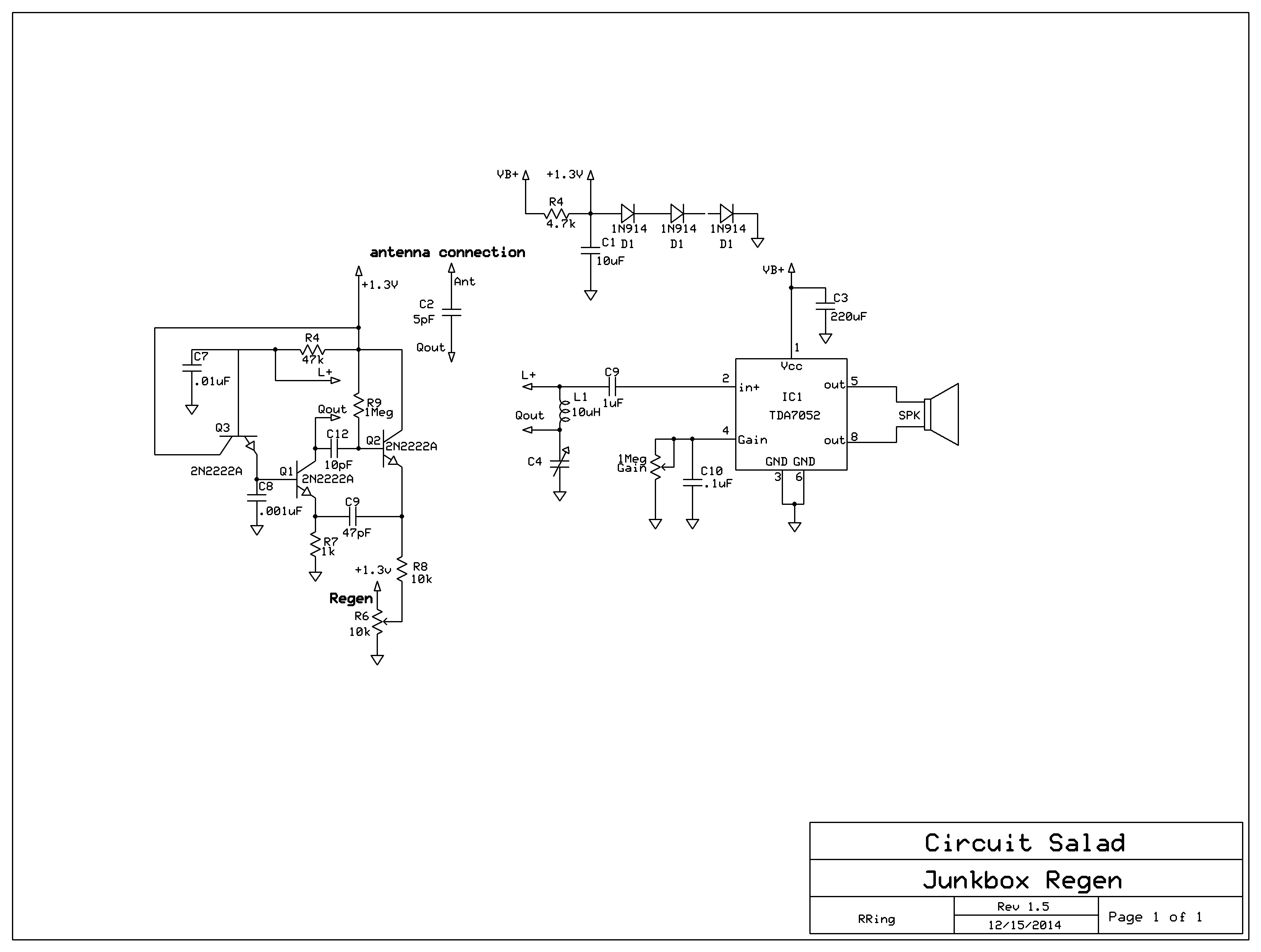

Schematic (revised 07/01/2015)

2222A regen_rev3

Variation on Junk Box Bipolar Regenerative Receiver

This version removes the direct coupling of Q2 in the previous version and increases the emitter resistor as well, finally the regeneration control is moved to the emitter circuit. The result is little better performance with less loading of the tank and less detuning caused  by  regeneration adjustment. Probably other optimizations possible also. I tried to make this thing not work…and it was difficult requiring extreme deviation from shown component values. It should be very easy to get this thing up and running with all sorts of tank circuits. It works well with a broad range of supply voltages also the values for R7, R8, R9, and R10 have a wide range of functional values. So one probably wants to start with my values and then tweak for best performance, once the circuit is up and running.

Schematic Diagram(modified TDA7052at circuit 07/01/2015)

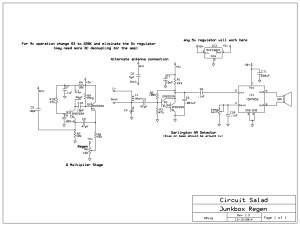

2222A regen_rev2
